LVB23
23” HD & SD SDI Digital, Analog, HD HDMI/DVI (+HDCP)
- High & Standard Definition Video LCD Monitors 1080/720/576/480(@60/59.94/50)
- 3G includes 2x3G HD/SD SDI-Digital input/ HD HDMI/DVI (+HDCP)
- HDMI/DVI inputs accepts up to 1080p HD
- Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
- Analog Inputs are Composite, Y/C, Component, RGB(SOG), DVI – I(Analog PC)
- Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
- Marker Display.
- UMD Support.
- Color Temperature – User, VAR, 11000K, 9300K, 6500K, 5400K, 3200K
Description
SPECIFICATIONS
Active Area (Diagonal): 23”/ 584.2 mm
MODES
High & Standard Definition Video Modes: 1920x1080p(50/60/30psf/25psf/24psf/30/25/24),1920x1080i(50/60), 1280x720p(50/59.94/60), 480i(59.94),576i(50)
Digital, VESA VGA, DVI/HDMI
*24psf/23.98psf signal format is not supported in “UNDERSCAN ” Mode.
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M
Scanning Modes: Under/Over/Zero/Pixel to Pixel Scanning
INPUTS
Digital Video Inputs: 3G HD SDI (@50/59.94/60), HD HDMI/DVI (+HDCP)
Digital Video Inputs: Digital Visual Interface, VESA & SMPTE Rates.
Analog Video Inputs: Composite, Y/C, Component, RGB(SOG), DVI – I(Analog PC)
Aspect Ratios: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
Picture-in-Picture : Analog (Composite1, 2, 3, Y.Pb.Pr, GBR, PC),SDI 1 inputs + SDI 2, Digital (DVI, HDMI) input PIP
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1920 H x 1080 V Pixels RGB strip arrangement(2,073,600 Pixes, 16:9)
Pixel (RGB Trio) Pitch, Depth: 0.2655 x 0.2655mm
Brightness, typical, 0°: 250 cd/m2
Contrast Ratio, 0° 1000:1
Color Processor: 10 bit color Processor
Viewing Angle, contrast>10:1 : Horizontal: 178(Typ),Vertical 178(Typ), 1000:1
Response Time: 12 ms
CONTROLS
User Controls: STANDBY, SDI 1, SID 2, ANALOG, MARKER, FUNCTION, MENU, UP, DOWN, SEL/INPUT
Remote Controls: IR, TCP/IP, RS-422, RS-232
BACKLIGHT
Light Source (standard): LED backlight system
LED Life: 12,000 Hrs

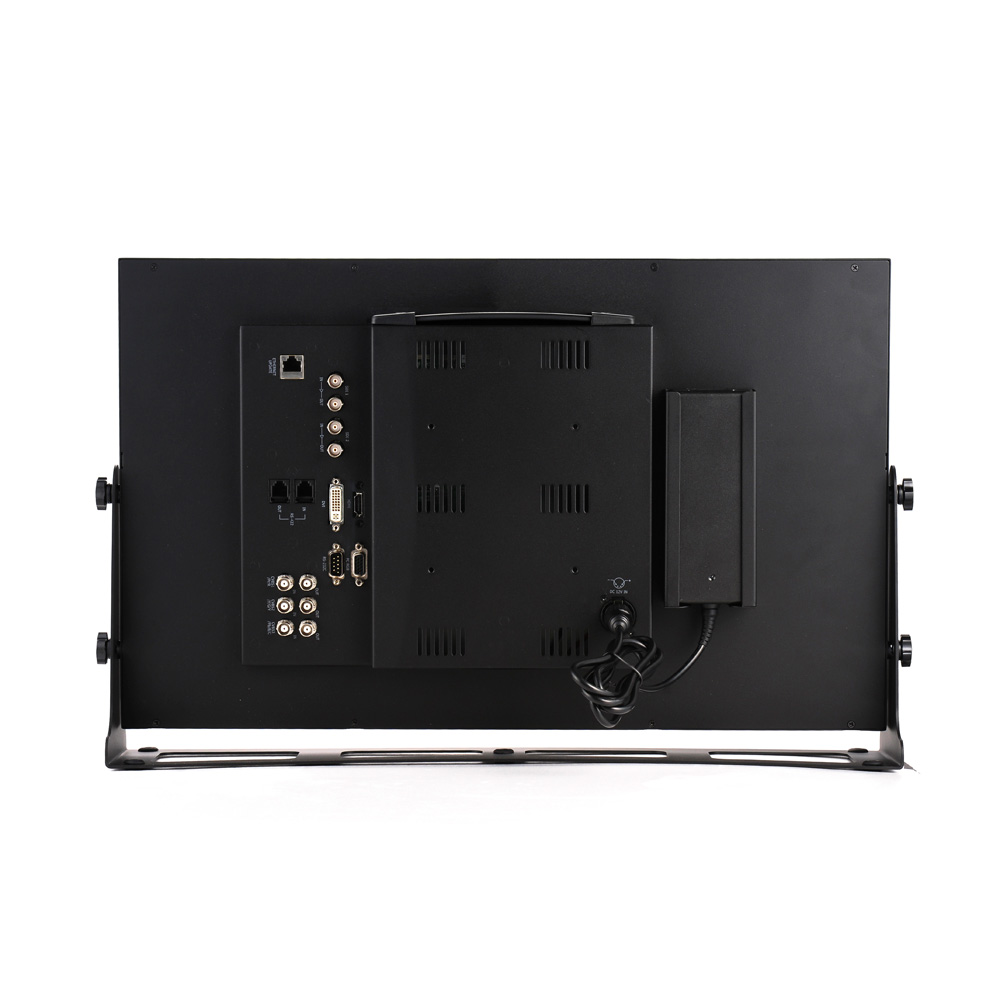

CONNECTORS
Video Connectors: BNC x 2 SDI 2 Channel Input, BNC x 3 Composite, YC(S-Video), Component(YPbPr/RGB) Input
HDMI/DVI Connectors: DVI-I x 1 DVI & Analog RGB Input, HDMI x 1 HDMI Input
POWER
DC Power: 12 VDC ±10%, 40 watts
DC Connector: XLR-4M (pin 1=Gnd, pin 4=+volts)
AC Power (detached power supply included): 90-264 VAC, 50/60 Hz
AC Power Connector: IEC 320-C14 3 pin Male
DISPLAY
Window (Display Area): 20.06” x 11.29”/ 509.76 mm x 286.74 mm
Cabinet Dimensions: 21.2 x 12.7 x 2.2” / 540 x 323.2 x 58mm (whd)
Weight: 23.1 lbs / 10.5kg
Mounting / Rack Mounting: VESA (100 x 100)
Operating (full spec): 0 ~ +50°C, no condensation, 0 ~ 10,000 feet (3,048m)
Storage: -20 ~ +60°C, no condensation, 0 ~ 40,000 feet (12,192m)
Available Options: –
