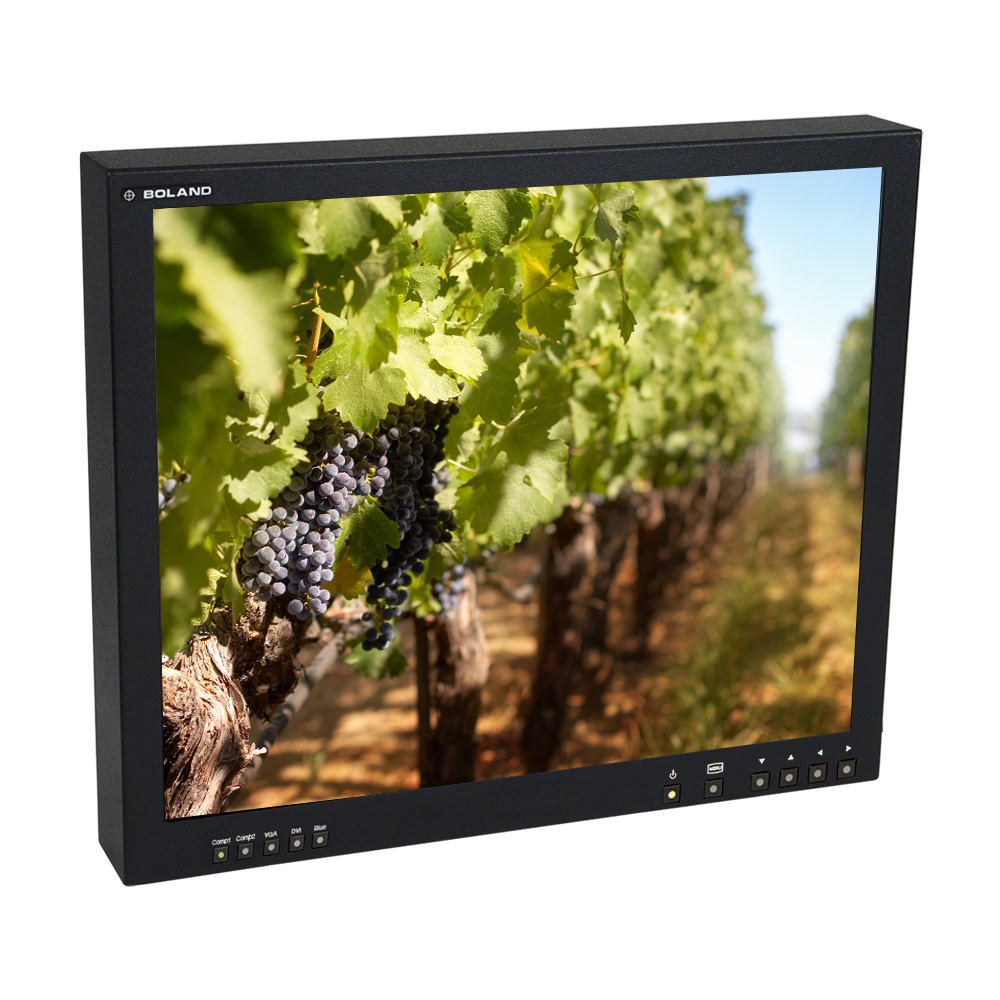

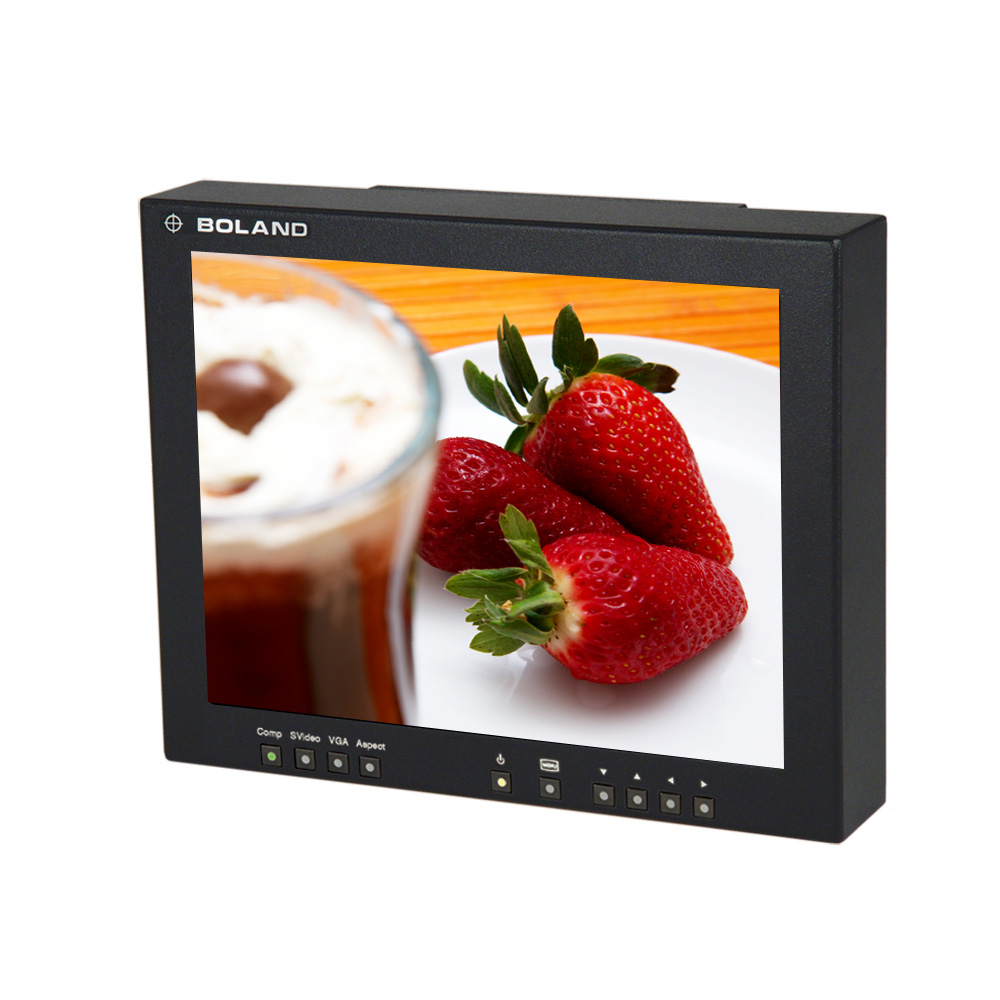

HD12LDB
12.1″ LED Hi-Resolution, Video / PC, Premium Video Monitor
- Very Bright Monitor for all indoor and extreme outdoor uses
- LED Backlight for cool operation with very low power consumption
- 2x HD SDI, 2- Composite,VGA (supports YPbPr/RGB)& DVI or HDMI [+HDCP]
- Modes: EGA to WUXGA input (up to 1920 x 1200) & 480/576/720/1080 in I, P, & sF; plus Composite NTSC/PAL/SECAM/NTSC4.43/PAL-M
- All 12-bit Digital Processing, (up to 1920 x 1200), 16.7 million colors, 24-bit
- Aspect Ratios: 16:9, 4:3, 1.85 to 1, etc. (Fixed and Adjustable)
- Fully Adjustable Scans: H & V sizes, Positions, Frame Markers
- Digital Adaptive Comb Filters; RS-232 standard and IR optional
Description
SPECIFICATIONS
Active Area (Diagonal): 12.1″
MODES
High & Standard Definition Video Modes: 1080/720/576/480 @23/24/25/29/30/60 i/p/sF Digital and Analog (autoselected), VESA VGA & DVI
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA (up to 1920 x 1200 @ 60 Hz)
Standard Definition Video Modes: NTSC / PAL / SECAM/ NTSC4.43 / PAL-M (autoselected)
INPUTS
6-Input Video Interface: 2 HDSDI, 2 Composite, PC VGA (including RGBHV, RGsB, RGBs, YPbPr), & HDMI or DVI
Aspect Ratios– presets, including: 16:9, 4:3, Letterbox, and (de-) Anamorphic, Fixed and Variable Aspect Ratio

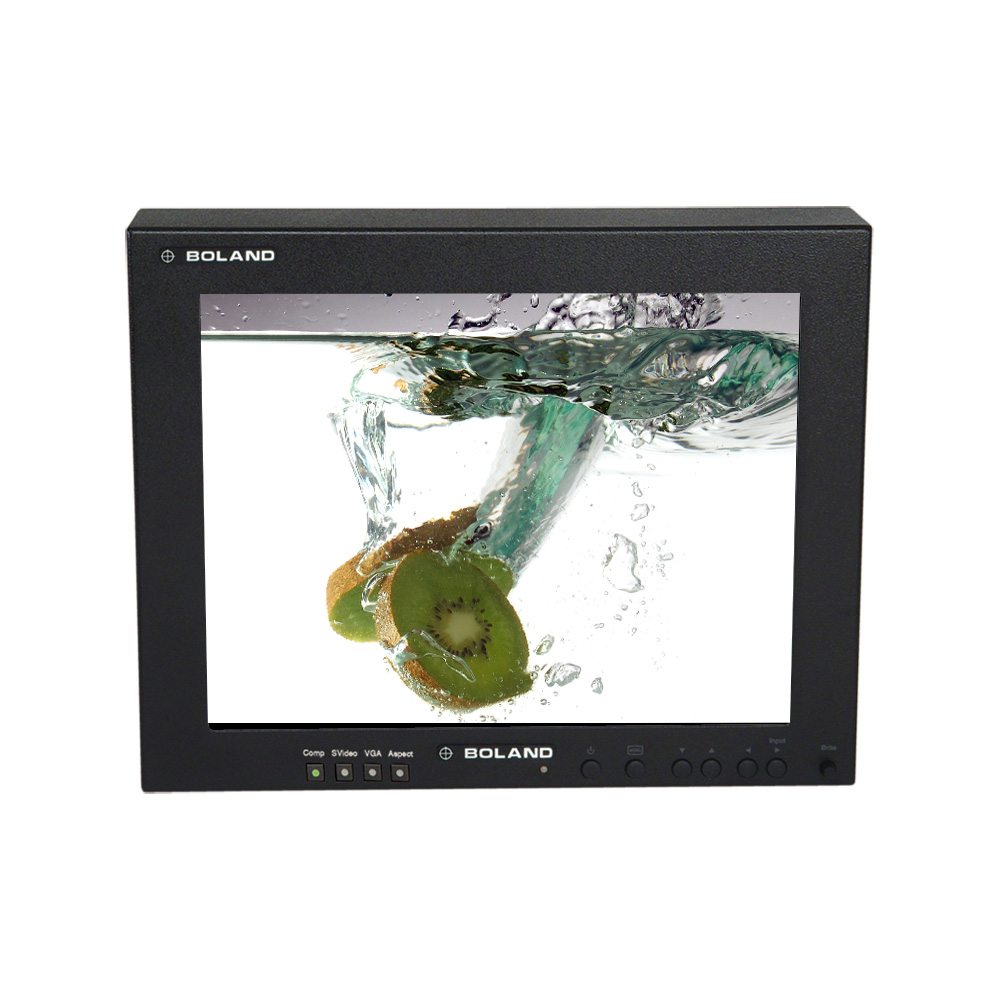

Images
Picture-in-Picture : Variable position window; inserts a video source into window over PC or HD image.
Window is size and position adjustable.
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1024 H x 768 V RGB Vertical Stripe (786,432 RGB Pixels, 1 pixel=R+G+B)
Pixel (RGB Trio) Pitch, Depth: 0.308 h x 0.308 v mm
Brightness, typical, 0°: 1500 nts
Contrast Ratio, 0°: 700:1
Dimming: Front panel control, 100 to 5%
Cooling: Passive, (no fans)
Color Bit Depth: 16.7 million colors (12-bit Digital Processing)
Viewing Angle, contrast>10:1 : H: ±80°, V: ±80°
Response Time: 12/13 ms
Standard Definition Video Resolution: 450 TVL
CONTROLS
User Controls: Menu System: Step Up/Down, Increment, Decrement, Hot Keys, Dimmer, Input Select Keys, On/Off
Remote Controls: Infrared (optional), Bi-direx RS-232(standard)
BACKLIGHT
Light Source (standard): White LEDs
Lamp Life: 50,000+ hours at full brite
CONNECTORS
Composite Video Connector: BNCx4 (in/outs 2: Hi-Z passive loop-thrus / auto-terminations)
VGA/PC Connector: DE-15HD-F (detachable 10′ M/M cord)
DVI-D Connectors: Industry Standard Types
POWER
DC Power: 12 VDC ±10%, 25 watts (at full brite); (optional 9-36 volts input available)
DC Connector: XLR-4M (pin 1=Gnd, pin 4=+volts)
AC Power (detached power supply included): 90-264 VAC, 50/60 Hz, 30 watts
AC Power Connector: IEC 320-C14 3 pin Male (universal)
DISPLAY
Window (Display Area): 9.744 x 7.323
Cabinet Dimensions: 12 x 8.83 x 1.934
Weight: 4.0 lbs/ 1.8 kgs (without stand, power supply, or rackmount)
Mounting / Rackmounting: 10-32 threaded inserts on back corners. VESA 75mm M4 screw in center. Options: RM,wall,stands
Operating (full spec): -30° to 65° C, 0- 95% RH (non-condensing) (Extreme)
Storage: -40° to +80° C (non-condensing) (Extreme)
Case Color & Material: Textured Semi-Gloss Black Powder Hard Coat, Aircraft Aluminum, Protected Glass screen
Available Options: Table Stands, Wall Mount Arms & Tilting Brackets
Approvals: RoHS (Pb) Compliant Product, High Vibration Environment Approved
