DID98-SDI

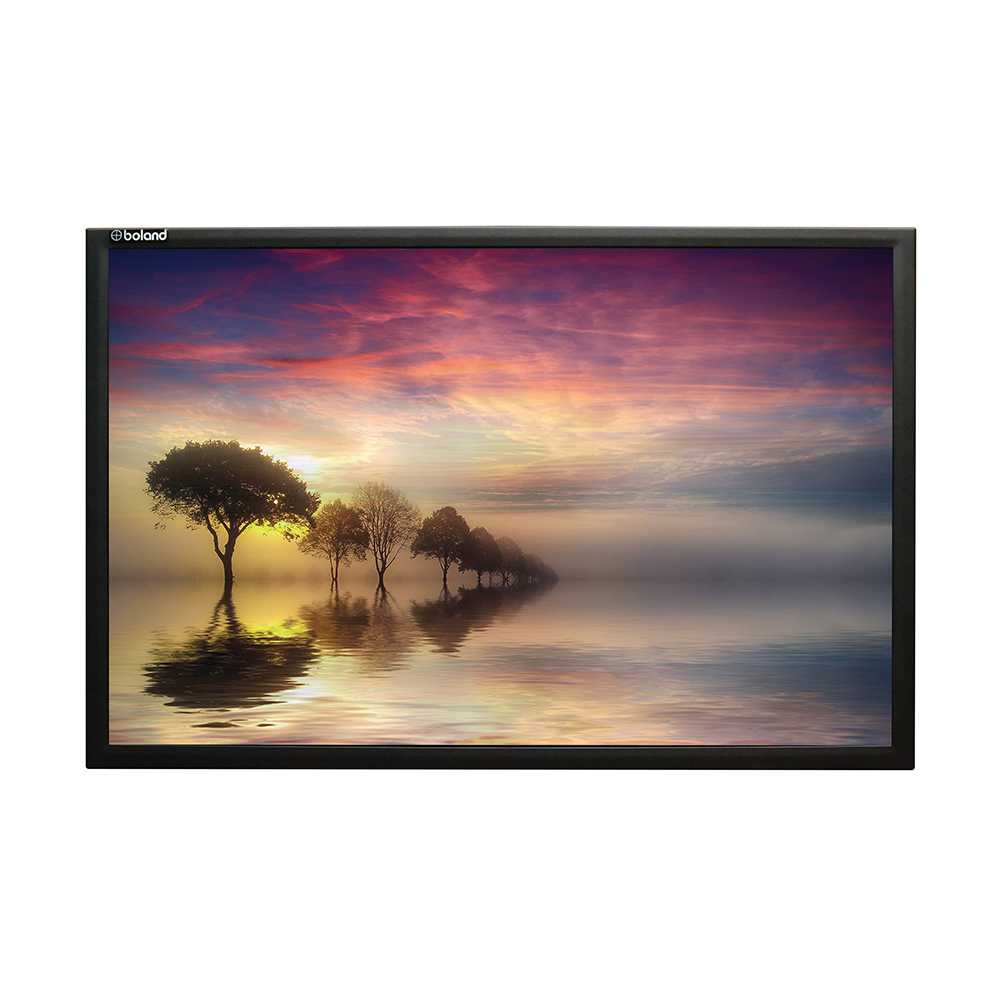

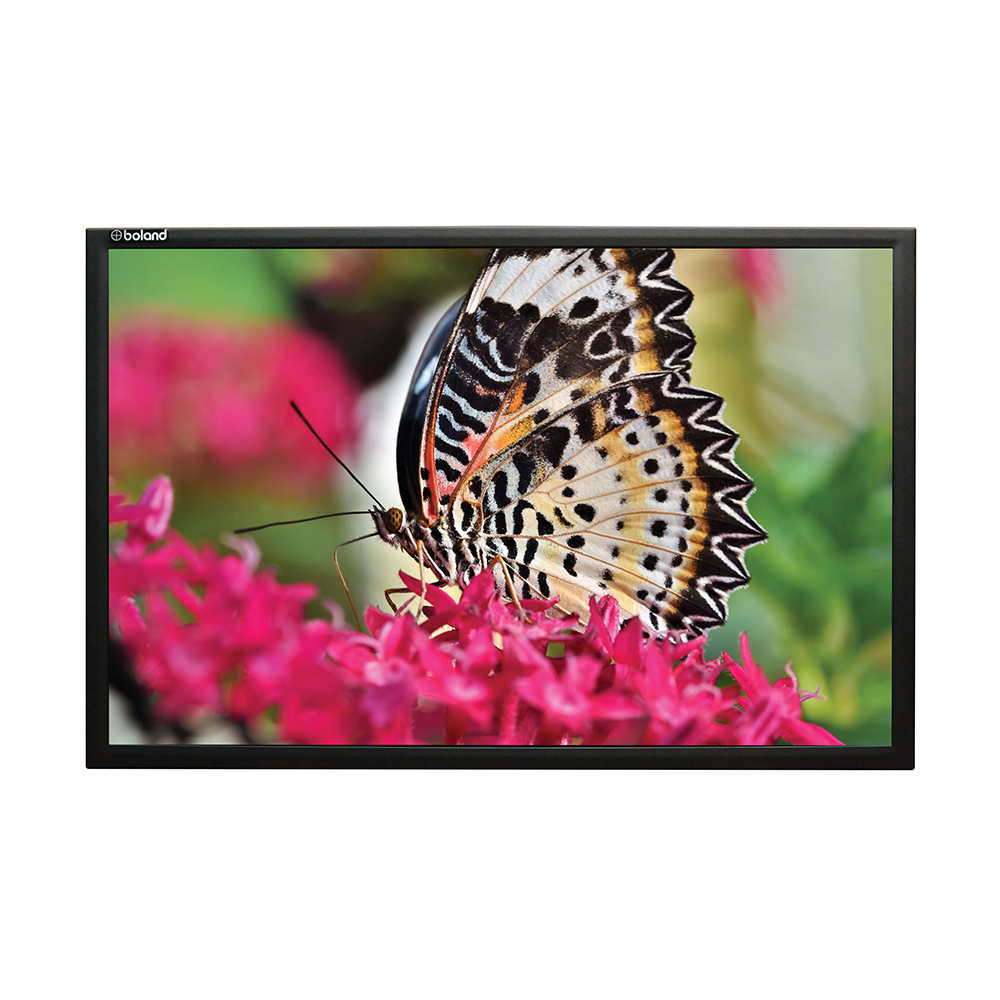

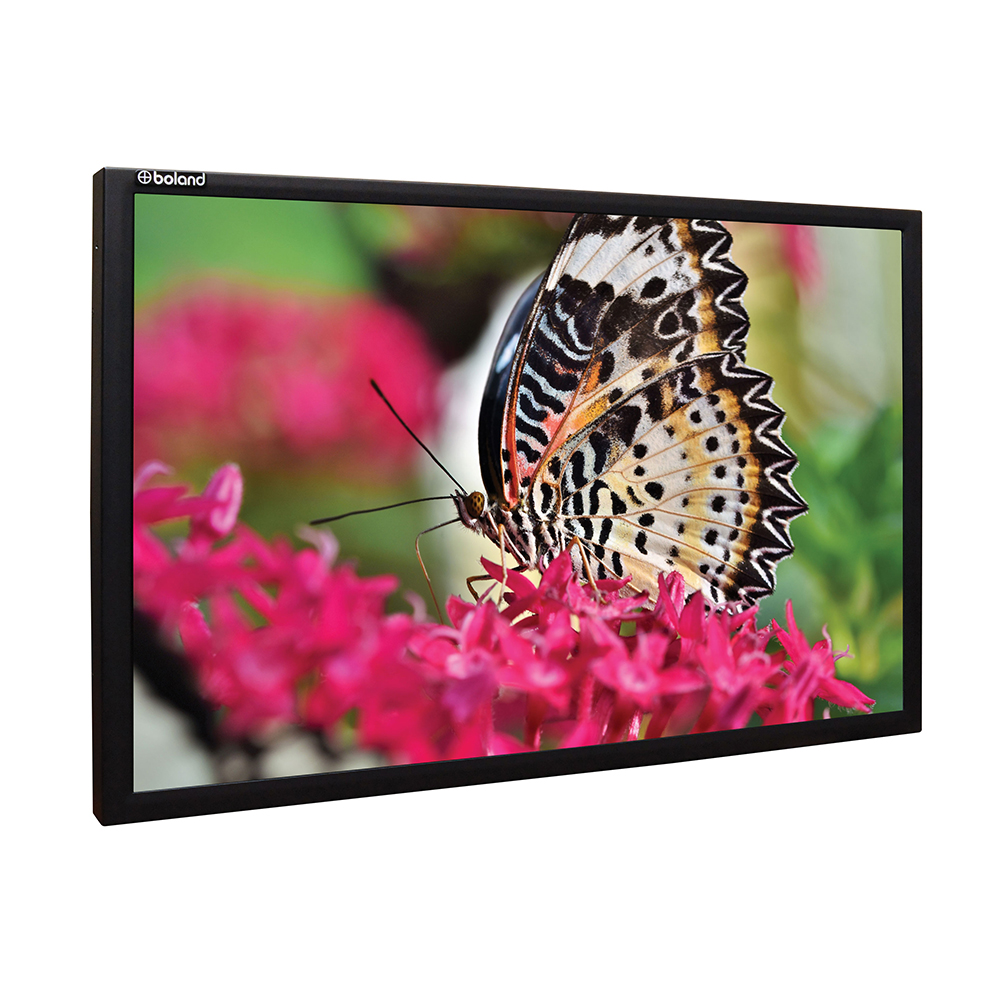

Model DID98-SDI: 98” HD 3G SDI Monitor
- Signal Input: 3GSDI with Loop +HDMI (2) inputs / 1 output +
Displayport - 3G SDI input with loop-thru, up to 1080p
- HDMI & DP inputs accept up to 2160p UHD
- HDMI 2.0 supported (includes HDCP 2.2)
- DP 1.2a supported (includes HDCP 1.3)
- Color Temperature Presets and Adjustable
- USB Firmware Upgrade port
- Multiple Aspect Ratio Support
- De-interlace Supported
Description
SPECIFICATIONS
Active Area (Diagonal): 98”
MODES
4K, 3G, HD, SD Video Modes:
3840x2160p(50/60)
1920x1080p(50/60)
1920x1080i(50/60)
1280x720p(50/60)
HDMI: 720p / 1080p / 2160p
INPUTS
Serial Digital Interface: 3G/HD SDI up to 1080p
Digital Video Inputs (HDMI & DP): Up to 2160p HDMI
Aspect Ratios: Full Screen, Auto, 4:3, 5:4, 16:9, 1:1
Pixel (RGB Trio) Arrangement: 1920 H x 1080 V Pixel Panel
Brightness, typical, 0°: 450 cd/m2
Contrast Ratio, 0°: 1100:1
Viewing Angle, contrast>10:1 : R/L 178° (Typ), U/D 178° (Typ)
Panel Response Time: 12 ms (G to G)
CONTROLS
User Controls: Standby, Menu, Source, Right (Vol+), Left (Vol-), Up, Down
Remote Controls: IR, RS-232
BACK LIGHT
Light Source (standard): White Light Emitting Diode
LED Life, hours: 50,000 (Typ) (in continuous operation at 25±2℃)
CONNECTORS
HDMI Connectors: HDMI: 2- HDMI Inputs, HDMI 2.0 + HDCP 2.2
HDMI: 1- HDMI Output
DisplayPort Connectors: DP: 1- DP Input, DP1.2a Compliant
POWER – ADAPTOR
Input AC Power: 100-230 VAC, 47-63 Hz, 1.6 A (max)
DC Connector: XLR-5M (pins 1+2=GND, pins 4+5=+24 V)
OUTPUT DC Power: 24 VDC ±10%, 5A, 120W (max)
AC Connector: IEC-60320 (IEC-320) C14 male
DISPLAY
Cabinet Dimensions: TBD
Weight: TBD
Operating (full spec): 0 ~ +50°C
Storage: -20 ~ +60°C
