4K55-HDR

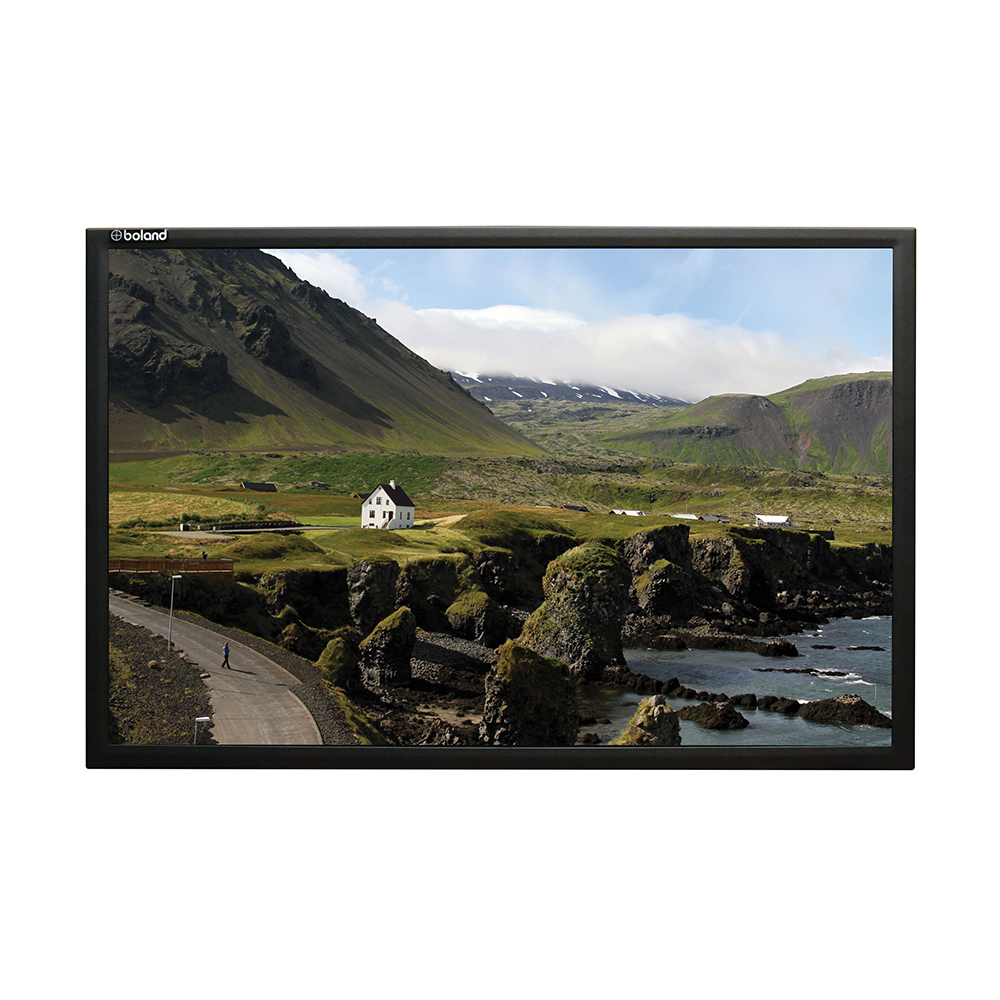

Model 4K55-HDR : 55” 4K Pro HDR Monitor
- 12G SDI Single Link, 3G SDI x 4 Quad Link (Square Div & 2SI)
- HDMI 2.0
- Color Space: 2020, P3, 709, 601, EBU
- SMPTE ST 2084 PQ & Hybrid Log Gamma
- Custom LUT import via USB
- Camera Log Conversion
- Built-in Quad Multi-view (SDI 4 Channel)
- Waveform, Vector Scope, Audio Meters / De-embed
- Focus Assist, False Color
- Time code •H/V delay •Markers •Multiple Aspect Ratios
- Also available in sizes 17”,31”,43”,49”,65”,98”
Description
SPECIFICATIONS
Active Area (Diagonal): 55”
MODES
High & Standard Definition Video Modes:
4096×2160(23.98/24/25/29.97/30/50/59.94/60p)
3840×2160(23.98/24/25/29.97/30/50/59.94/60p)
2048x1080p(24/25)
1920x1080p(50/60/30psf/25psf/24psf/30/25/24)
1920x1035i(60/59.94)
1920x1080i(50/59.94/60)
1280x720p(24/25/30/50/59.94/60
HDMI: 720p / 1080p / 2160p
INPUTS
Digital Video Inputs(SDI): 12G / 3G / HD SDI (SMPTE ST 2082 /SMPTE 259M/292/296)
Digital Video Inputs(HDMI): up to 2160p HDMI
Aspect Ratios: Full Screen, 16:9, and other wide aspect ratios
Pixel (RGB Trio) Arrangement: 3840 H x 2160 V Pixels
Pixel (RGB Trio) Pitch, Depth: 0.315 mm x 0.315 mm (1.07 Billion colors 10bit)
Brightness, typical, 0°: 500 cd/m2
Contrast Ratio, 0°: 1100:1
Color Processor: 10 bit color Processor
Viewing Angle, contrast>10:1 : R/L 178(Typ.), U/D 178(Typ.)
Panel Response Time: 8 ms (G to G))
CONTROLS
User Controls: ST-BY, SINGLE, 2SI, QUAD, HDMI, AUDIO, F1 ~5, MENU, SEL/INPUT, UP, DOWN, ADJUST
Remote Controls: IR, TCP/IP, RS-422, RS-232
LIGHT
Light Source (standard): Light Emitting Diode (GBr LED) Backlight system
LED Life: 30,000 hrs
CONNECTORS
Video Connectors: BNC x 6 12G SDI 2 Channel Input/Only 12G Quad SDI 2 Chanel Input/ SDI 2 Channel Output
HDMI Connectors: HDMI x 1 HDMI Input
POWER
DC Power: 24 VDC ±10%,
DC Connector: XLR-5M (pin 1,2=Gnd, pin 4,5=+volts)
AC Power (detached power supply included): 100-240 VAC, 50/60 Hz
AC Power Connector: IEC 320-C14 3 pin Male
DISPLAY
Operating (full spec): 0 ~ +50°C, no condensation, 0 ~ 10,000 feet (3,048m)
Storage: -20 ~ +60°C, no condensation, 0 ~ 40,000 feet (12,192m)
